LAMPRO LC COB Series
Product Overview
The LAMPRO LC COB Series represents a cutting-edge advancement in LED display technology, integrating Chip-on-Board (COB) technology to deliver superior visual performance and durability. This series is engineered to cater to both indoor and outdoor applications, providing versatile solutions for various display needs.
Indoor Applications:
For indoor settings, the LC COB Series offers high-density LED diodes with pixel pitches ranging from 1.25mm to 4mm. This fine pixel pitch ensures sharp and clear images, making it ideal for environments requiring close viewing distances, such as retail shops, TV studios, churches, cinemas, airports, and museums. The lightweight design facilitates easy installation and reduces structural loads on buildings, while enhanced low-grayscale rendering ensures consistent image quality without block shadows, even at lower brightness levels.
Outdoor Applications:
The LC COB Series is built to withstand various weather conditions, featuring highly protective and weather-resistant designs. With support for die-casting aluminum cabinets, these displays are both lightweight and robust. They offer high brightness levels, efficient heat dissipation, and energy-efficient operation, making them suitable for outdoor advertising, creative towers, and other dynamic outdoor installations.
Versatility and Customization:
With a wide range of pixel pitch options—from 1.25mm to 10mm—the LC COB Series can be tailored to meet specific resolution and viewing distance requirements. The modular design allows for flexible configurations, accommodating various installation scenarios and creative display designs.
Enhanced Visual Performance:
The series boasts a high refresh rate of up to 3840Hz and a contrast ratio of 3000:1, ensuring flicker-free images with deep blacks and vibrant colors. These features contribute to an immersive viewing experience, capturing audience attention in both indoor and outdoor settings.
Applications:
The LAMPRO LC COB Series is widely applied in:
- Retail shops and chain stores
- TV studios
- Churches
- Cinemas
- Airports
- Museums
- Creative towers
- Outdoor advertising
By integrating advanced COB technology, the LC Series ensures enhanced durability, improved heat dissipation, and superior visual performance, making it a reliable choice for various display applications.
Technical Specifications
| Feature | Details |
|---|---|
| Pixel Pitch Options | 1.25mm, 1.538mm, 1.839mm, 2mm, 2.5mm, 3mm, 3.076mm, 3.3mm, 4mm, 5mm, 5.926mm, 6mm, 6.667mm, 8mm, 10mm |

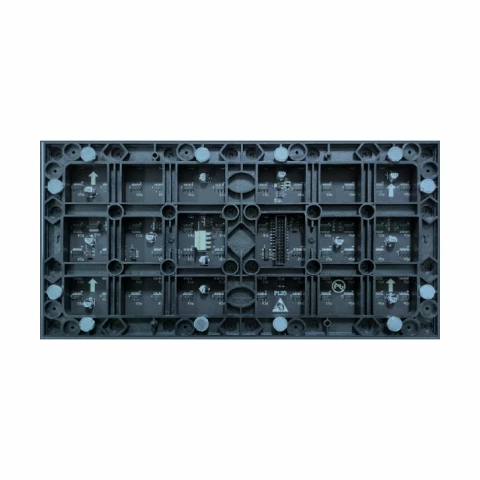

| Module Dimensions | 320×160mm (for most models); 192×192mm (specific to certain models like LC3) |
| Brightness Levels | Indoor: 500-800 nits; Outdoor: High brightness suitable for various lighting conditions |
| Viewing Angle | 140° horizontal and vertical |
| Refresh Rate | Up to 3840Hz for flicker-free images |
| Contrast Ratio | 3000:1, ensuring deep blacks and vibrant colors |
| Module Weight | Approximately 0.48 kg per panel |
| Operating Conditions | Temperature: -20℃ to +45℃; Humidity: 10% to 50% RH (non-condensing) |
| Power Consumption | Maximum power consumption varies by model; for instance, LC1.25 consumes up to 586W/㎡ |
Note: Specifications may vary based on specific configurations and applications.
