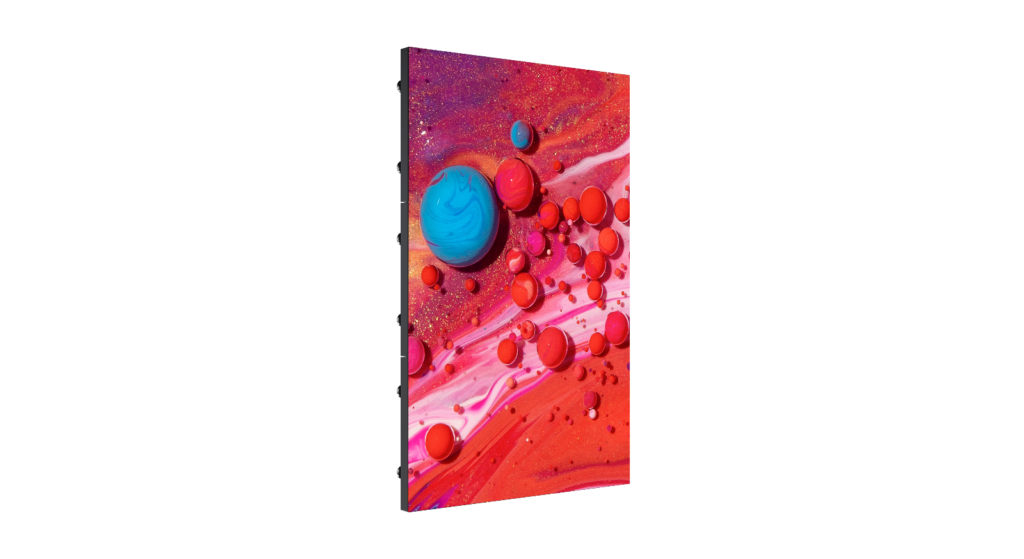

LCM Series
Pixel Pitch Options (mm)
2.5
Product features

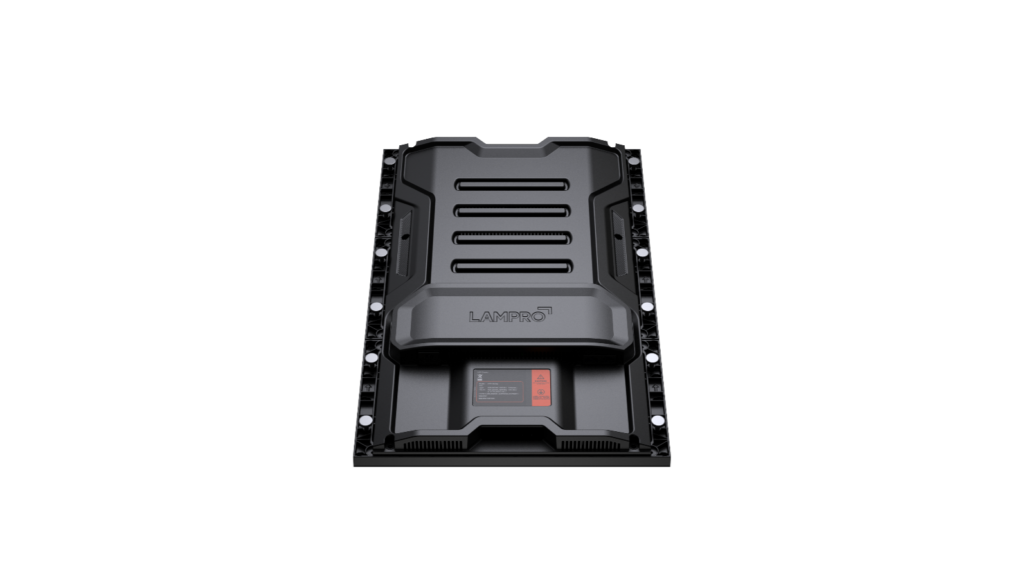

🔹 Exclusive system card
- Power supply, hub, receiving card 3-in-1, exclusive design of LAMPRO.
🔹 Ultra-light and thin
- The maximum thickness is 52.2mm.
- The thickness of the screen is 28.2mm.
- The weight of the cabinet is only 2.2kg
🔹 High Brightness ,High Contrast，High Refresh
- Standard brightness ≥ 600nit, refresh rate up to 5000:1 , Standard 4200Hz.
🔹 Efficient Installation, Front Maintenance
- Cabinet can directly magnetically attract the steel structure.
- Quickly complete the construction of the large screen.
- Greatly improve installation efficiency and save costs.
Why Choose the LC Series?
- Scalable: Wide pixel pitch range for every use case
- Reliable: Stable performance indoors and outdoors
- Creative-ready: Bevel-cut modules support unique screen shapes
- Easy to Deploy: Lightweight design, standard modules, and rapid installation
| Parameter | Value |
| Pixel Pitch | 2.5mm |
| LED Type | SMD 2121 |
| Module Resolution（W×H） | 128X64=8192 Pixels |
| Pixel density（pixels/sq.m.） | 160000 dot/㎡ |
| Module Size (WxH) | W320mmxH160mm |

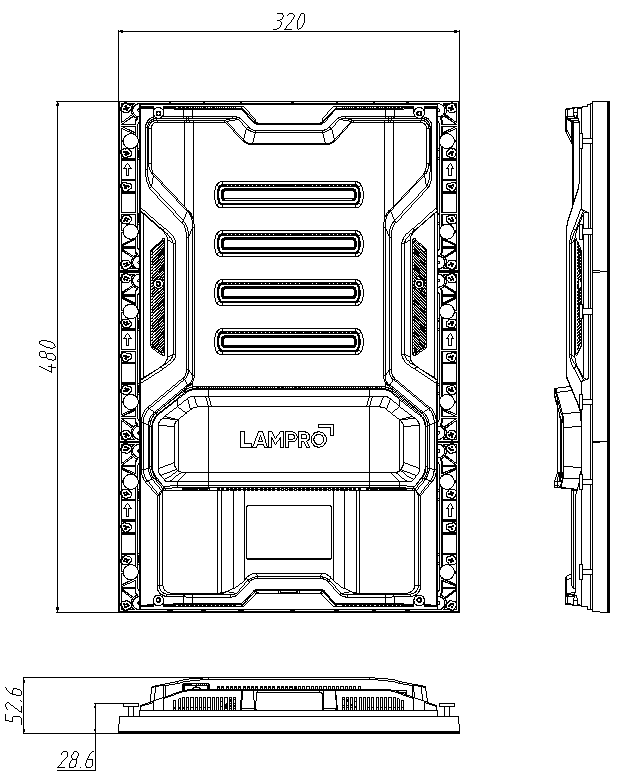

| Cabinet Size (WxHxD) | 320mmx480mmx52.6mm（With Module, Kit,Back Cover） |
| Cabinet Weight (kg/panel) | 2.2±0.1kg |
| Maintenance | Full front maintenance |
| Ingress Protection | IP30 |
| Planeness | ≤0.5mm |
| Cabinet Type | Die-Cast Aluminum/Plastic |
| Single-dot Brightness Calibration | Support |
| Brightness | ≥600 nits |
| Color Temperature | 2000K～9300K Adjustable |
| Beam Angle（Hor/Ver°） | 130°/130° |
| Brightness/Color Uniformity | ≥98% |
| Contrast Ratio | 5000:1 |
| Input Power <Max> | 312 W/㎡ |
| Input Power <Typical> | 104 W/㎡ |
| Power Supply Input Voltage | AC90～132V/ AC186～264V, Frequency 47-63（Hz） |
| Frame Changing Frequency | 60Hz |
| Refresh Rate | 4200Hz |
| Processing Depth | 12~14Bit |
| Video Support | 2K、4K |
| Life Span（hrs） | 100000hrs |
| Working Temp/Humidity（℃/RH） | -20℃~45℃ / 10%~50%RH (No Condensation) |
| Storage Temp/Humidity（℃/RH） | -20℃~50℃ / 10%~60%RH (No Condensation) |
