LDA Series: Indoor module

LDAII Series
Worry-free with Unprecedented Stability
User-friendly with High Flexibility
Vivid Visual Experience

Pixel Pitch (mm):
1.2 | 1.5 | 1.8 | 2 | 2.5 | 3.076 | 4

Brightness (nit):
500 | 500 | 500 | 500 | 500 | 500 | 500

Key Features

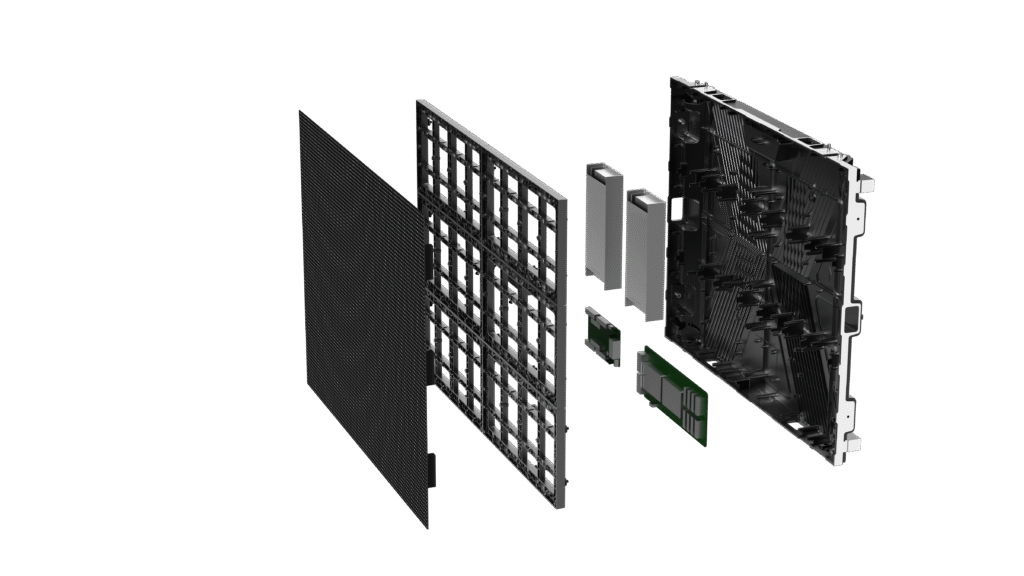

01/03 – Easy Handling, Maintenance, and Installation

• Cabinet weight: 7.8 kg per cabinet.

• Cabinet thickness: 60 mm.

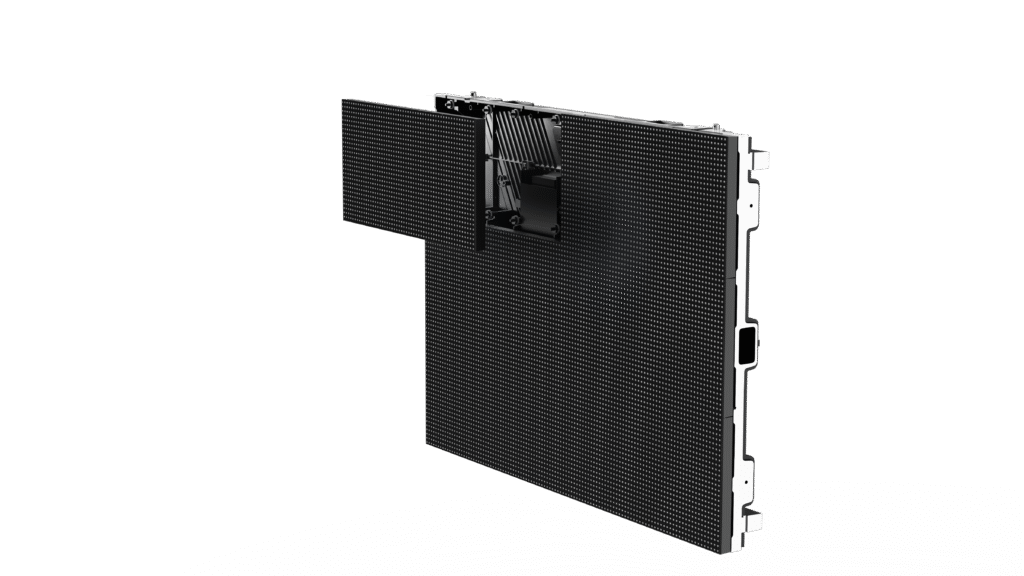

• Front maintenance with both front & rear installation options.

• Hollowed design for effortless assembly.

Tool-free module assembly and disassembly.

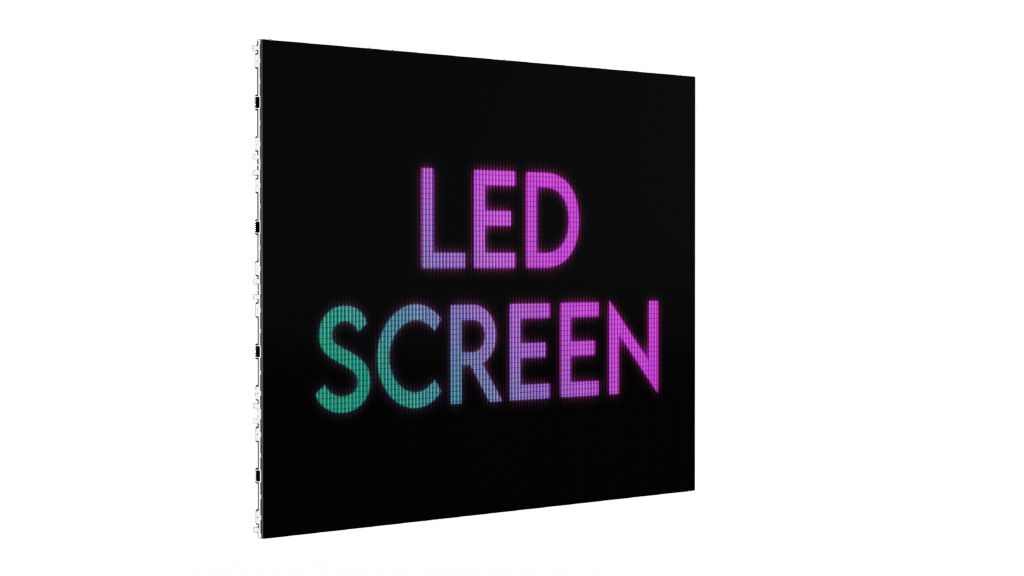

Vivid Visual Experience

• 3840 Hz high refresh rate for smooth, flicker-free visuals.

Data & Power Redundancy

Ensures uninterrupted performance with redundant power and data pathways.

Efficient Heat Dissipation

• Multiple innovative heat dissipation designs keep the operating temperature at 43°C, which is 5°C lower than conventional LED displays.

• Contact thermal conductance accelerates heat transfer.

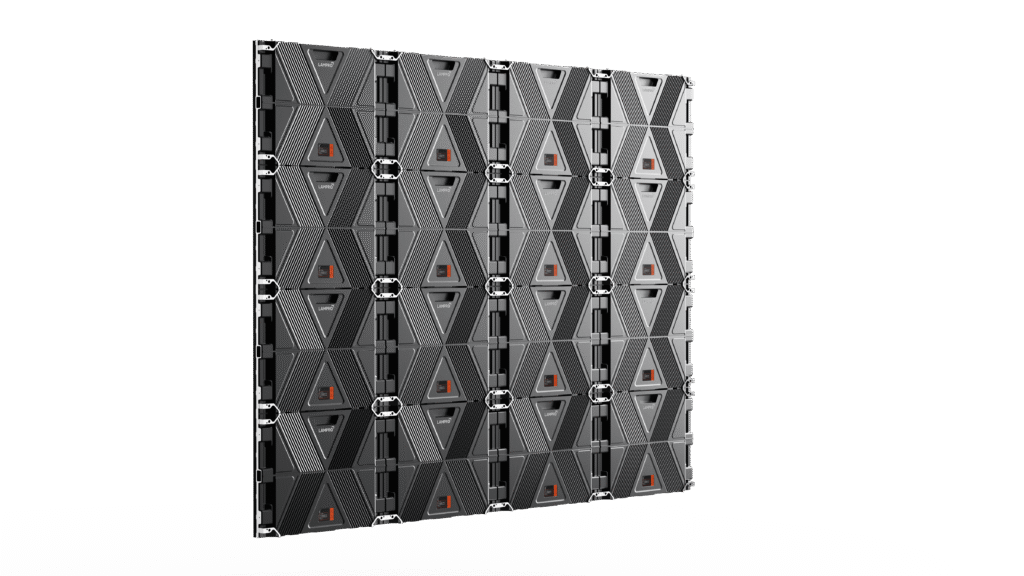

• X-shaped hollowed & wave design for larger heat dissipation area.

• Textured heat dissipation ribs for better airflow.

XYZ Axis Adjustment for Perfect Flatness

• High-precision dowel pin design for quick and accurate positioning.

• XYZ axis adjustment ensures flatness ≤0.2 mm, delivering a seamless display with no visible scan lines.

Anti-collision Design

Advanced anti-collision technology protects the LED lamp face, pads, and PCB from damage during transportation and splicing.

Customized Cabinet Options

• Creative configurations such as fish tank screens, corner screens, Rubik’s cube screens, and more.

• Perfect for exhibition halls, shopping malls, playgrounds, and other unique spaces.

Real-time Monitoring

• Supports easy and continuous real-time monitoring of operating status for optimal performance.
